CABINEX-EWT

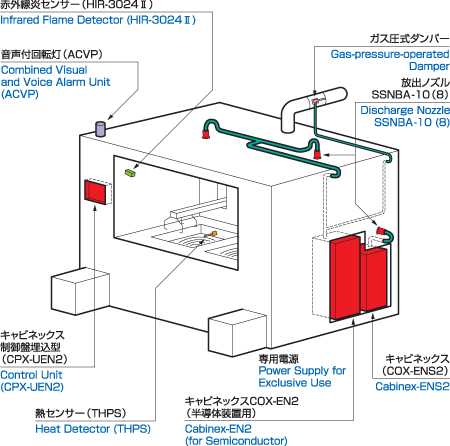

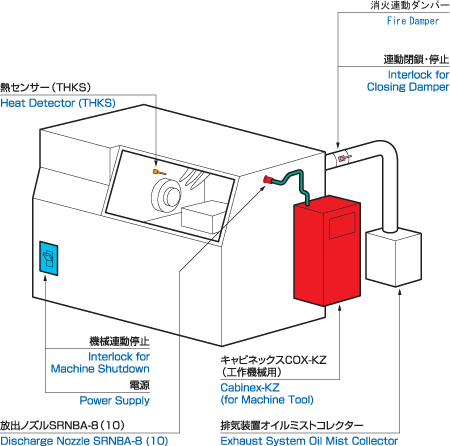

- CO2자동 소화 시스템(반도체·액정 장치·공작 기계용)
- 초기 소화를 목적으로 공장 내의 생산 설비에 대해 설치하는 시스템
- FM(월드 스탠더드), 중국, EU규격 취득 제품
- 납입 실적 eg)SAS, Samsung Austin, Texas Instruments, TSMC, UMC, AUO, BOE
- 해외 네트워크에 의해 현지로부터의 A/S가 가능
SPECIFICATION
| CABINEX-EWT | |||
|---|---|---|---|
| Model No. | COX-50EWT | COX-100EWT | COX-100EWT-W |
| Applovals | FM Approved | ||
| Extinguishing Agent | CO2 | ||
| Extinguishing Agent Weight | 22.7kg（50LB) |
45.4kg（100LB） |
45.4kg（100LB） |
| Dimentions ( H×W×D ) mm | 1,530×500×370 | 1,980×550×400 | 1,980×850×400 |
| Color | Red | ||
| Total Weight ( Approx.) | 170kg | 270kg | 400kg |
| Operating Temperature | 0～40℃ | ||
| Input Voltage | A℃ 100－120／187－240V、50／60Hz | ||
| Power | 105W max | ||
| Control Circuit Voltage | DC24V | ||
| INPUT/OUTPUT | |||
| Battery Input | 12V DC Battery ×2 | ||
| SI Module Input | 1line | ||
| Manual Stations Input | 1line | ||
| Discharge Module Input | 1line | ||
| Relay Module Input | 1line | ||
| Actuator Output | DC24V / 1.0A Max. | ||
| Horn & Strobe Output | DC24V / 0.5A Max. | ||
| Output Voltage | DC24V / 1.5A Max. | ||
| Fire Alarm Relay | DPDT Contact Rating:60W / 125VA, Voltage:AC250 / DC200V Max., Current:1A Max. | ||
| Pre-Discharge Relay | DPDT Contact Rating:60W / 125VA, Voltage:AC250 / DC200V Max., Current:1A Max. | ||
| Fault Alarm Relay | DPDT Contact Rating:60W / 125VA, Voltage:AC250 / DC200V Max., Current:1A Max. | ||
| FUNCTION | |||
| Discharge Delay Timer | 0, 5, 10, 20, 30, 60 Second Selectable | ||
| Number of Zones | 2
( AND / OR Selectable ) |
||
| Detector Address | Maximum 32 Point | ||
| History Record | Max.100 | ||
| Alarm Silence | Push “Alarm Silence” to Silence | ||
| Alarm Buzzer | Fire Alarm: Continuous Trouble Alarm: Intermittent | ||
| Manual Release | Push “Discharge Button” to Discharge | ||
| LED/SW | |||
| AC OK LED | Green ( Off at AC Power Down ) | ||
| Pre Discharge LED | Red ( Flashes when in discharge pending. Off when Discharge ) | ||
| Discharge LED | Red ( On when Discharge Activates ) | ||
| Zone 1 Fire LED | Red ( Flashes when zone 1 alarm ) | ||
| Zone 2 Fire LED | Red ( Flashes when zone 1 alarm ) | ||
| Manual Release LED | Red ( Flashes when Manual release Activates ) | ||
| Fault LED | Yellow ( Flashes when fault ) | ||
| Discharge Disabled LED | Yellow ( flashes discharge disabled activates ) | ||
| Alarm Silenced LED | Yellow ( Flashes when alarm silenced ) | ||
| Discharge Switch | Red push button ( Outside the control panel ) | ||
| AC Power Switch | White toggle switches | ||
| Enter Switch | White push button ( for address checking ) | ||
| Scroll Switch | White push button ( for address checking ) | ||
| Reset Switch | White push button ( for address checking ) | ||
| Silence Switch | White push button | ||
